VGA HDMI USB 1080P Microscope Camera

FOB Reference Price:Get Latest Price
$20.00 - $100.00 / Piece | 1 Piece/Pieces (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Shandong, China
Brand Name:
Dovoll
Model Number:
MC20-N
Theory:
Video Microscope
Drawtube:
Monocular
Sensor size:
2/3" CCD color
Image data format:
8bit/12bit optional
Sensitive:
1240mV-1/30s Accumulation
Spectral response:
380nm-650nm (with IR-filter)
Shutter Type:
Global Shutter
Exposure time:
0.1ms-600s
Acquisition methods:
Continuous output
Exposure control:
Manual / Auto / regional exposure
White balance:
Manual / time / area White Balance
Product firmware update:
Support remote update
Supply Ability
Supply Ability:
500 Piece/Pieces per Month
Packaging & Delivery
Packaging Details
Individual package: foam&carton
Port
Qingdao
Product Display
Parameter
Item
MC20-N (color)
Sensor
ICX285AQ

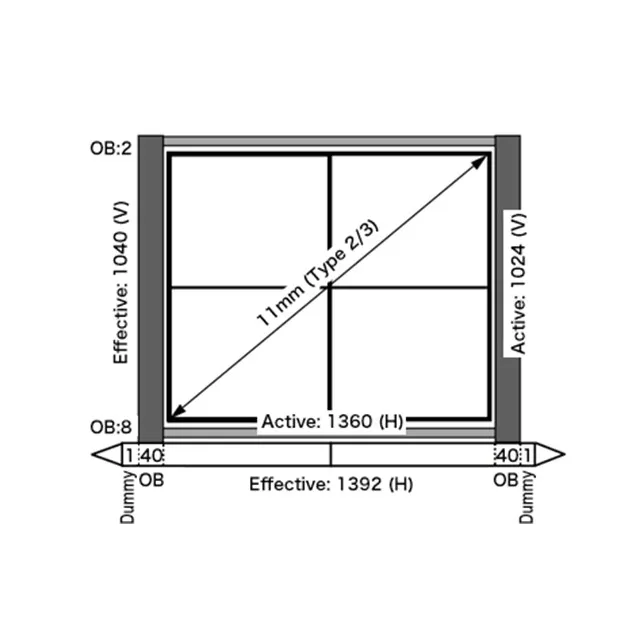

Sensor size
2/3" CCD color
Effective pixels
1360(H)*1024(V)



Resolution and frame rate
1280*720(ROI): 26fps
1360*1024:20fps
680*512(SUM2-Mono):38fps
680*512(SUM2-Mono):38fps
340*256(SUM4- Mono) :64fps
Any size ROI
Pixels Size
6.45um*6.45um
Sensor Active Size
10.2mm*8.3mm
Analog-digital conversion
12bit
Image data format
8bit/12bit optional
Sensitive
1240mV-1/30s Accumulation

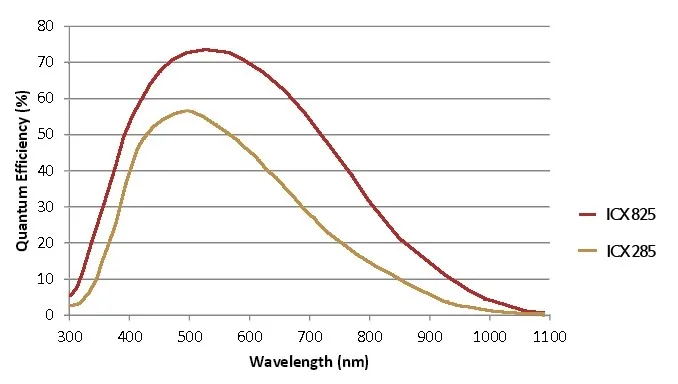

Spectral response
380nm-650nm (with IR-filter)
Shutter Type
Global Shutter
Exposure time
0.1ms-600s
Acquisition methods
Continuous output
Exposure control
Manual / Auto / regional exposure
White balance
Manual / time / area White Balance
Product firmware update
Support remote update
Photo support format
RAW、BMP、JPG、PNG
Programmable control
Camera work rate, image size, camera mode, image brightness, exposure time
Operating system
Windows XP(32 bit); Win7(32/64 bit) ; Win8(32/64 bit)
Supporting connector
TWAIN,Direct Show
Data connector
USB2.0 480Mb/s
power dissipation
Under 3W
Supply
USB5V Powered (no external power supply circuit)
Operating temperature
0℃~50℃
Storage temperature
-20℃~60℃
Operating humidity
10%-90%RH(No condensation )
Storage Humidity
10%-60%RH
Optical Interface
C-Mount
Product Application

MC20-N is a newly high quality microscope camera developed by Mshot. It adopts large array and high-performance CCD with images cache technique. Performance is comparable with cooling type CCD camera. MC20-N CCD camera has the advantages of low noise, high definition and good color. The transmission is stable and reliable. Connected with USB2.0 interface, plug and play, no extra capture device and power are needed.

Application Range:

Microbiology

TB diagnostic

Bioscience

GEL documentation

Solar cell/EL detection

FITC, FRET

Bio- &Chemi- Luminescence

Biochip reading

Features

High performance comparable with cooling type CCD camera.

The transmission is stable and reliable.

Connected with USB2.0 interface, plug and play, no extra capture device and power are needed.

Support TWAIN and DirectShow interface, fully compatible.

Support OS Windows XP(32 bit),Win7(32/64 bit)), Win8 (32/64 bit).

Longest time of exposure up to 600s.

Excellent multi-camera performance, support four cameras full-speed working in one PC .

Benefits

Get accurate information from the high performance images.

User can choose computer accordingly.

High frame rate provides user more fluency while using.

Product advantage

Produce images with low noise, high definition and good color.

Better compatibility.

High frame rate.

Provide bright vision in dark environment.

Convenient operating procedure.
